Self-Test C-1.7.1: Calculate Piping Measurements
Complete Self-Test C-1.7.1 and check your answers.

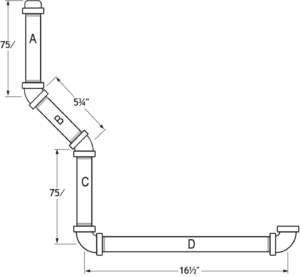

- Solve for the end-to-end lengths for the pieces indicated in Figure 16 (to the nearest [latex]\frac{1}{8}\text{"}[/latex]). [latex]1\frac{1}{4}\text{"}[/latex] pipe – screwed fittings (malleable iron class 150):
A: C:
B: D:

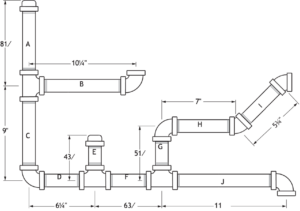

- Solve for the end-to-end lengths for the pieces indicated in Figure 17 (to the nearest [latex]\frac{1}{8}\text{"}[/latex]). [latex]1\frac{1}{2}\text{"}[/latex] pipe—screwed fittings (malleable iron class 150):
A: F:
B: G:
C: H:
D: I:
E: J:

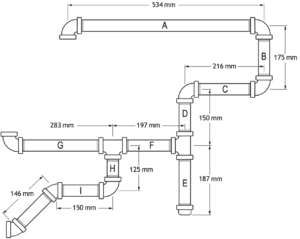

- Solve for the end-to-end lengths for the pieces indicated in Figure 18 (to the nearest 0.1 mm). 25 mm pipe—screwed fittings (malleable iron class 150):
A: F:
B: G:
C: H:
D: I:
E: J:

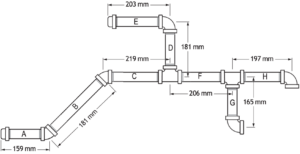

- Solve for the end-to-end lengths for the pieces indicated in Figure 19 (to the nearest 0.1 mm). 20 mm pipe—screwed fittings (malleable iron class 150):
A: E:
B: F:
C: G:
D: H:

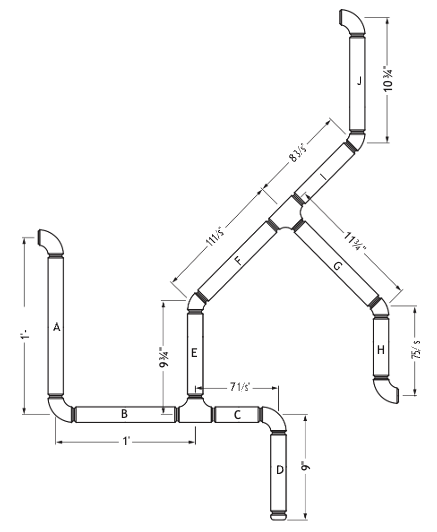

- Solve for the end-to-end lengths for the pieces indicated in Figure 20 (to the nearest [latex]\frac{1}{8}\text{"}[/latex]). 2″ pipe—butt-weld fittings—long radius 90° ell, c/w [latex]\frac{1}{8}\text{"}[/latex] gap:
A: F:
B: G:
C: H:
D: I:
E: J:

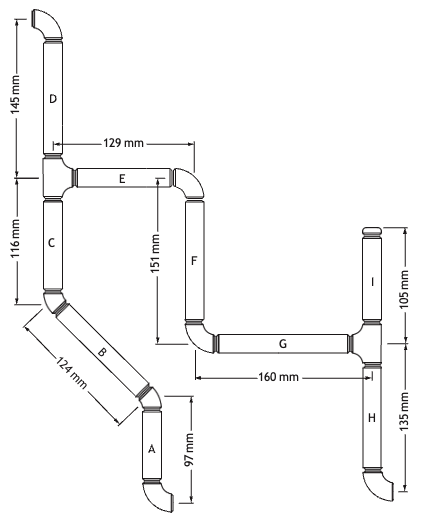

- Solve for the end-to-end lengths for the pieces indicated in Figure 21 (to the nearest 0.1 mm). 15 mm pipe—butt weld fittings—long radius 90° ell, c/w 3 mm gap:
A: F:
B: G:
C: H:
D: I:
E:

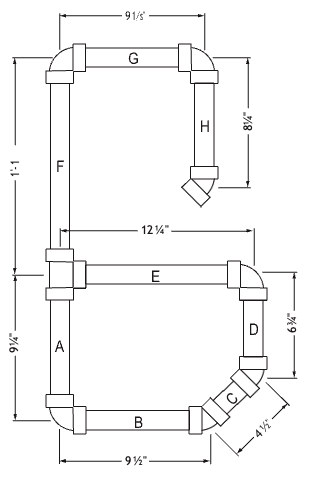

- Solve for the end-to-end lengths for the pieces indicated in Figure 22 (to the nearest [latex]\frac{1}{8}\text{"}[/latex]). 1″ pipe—socket-weld fittings—3000# sched. 80 (c/w [latex]\frac{1}{16}\text{"}[/latex] gap, included in FA table values):
A: E:
B: F:
C: G:
D: H:

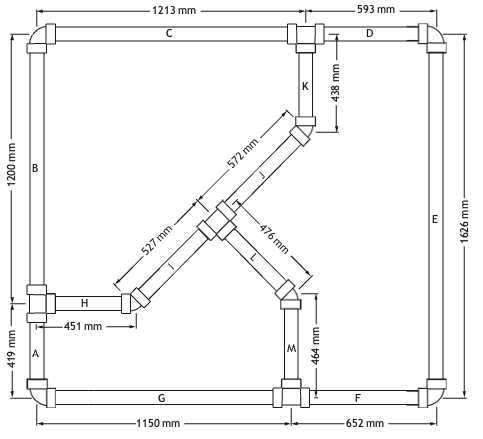

- Solve for the end-to-end lengths for the pieces indicated in Figure 23 (to the nearest 0.1 mm). 50 mm pipe—socket weld fittings—6000# sched. 160 (c/w 1.6 mm gap, included in FA table values):
A: H:
B: I:
C: J:
D: K:
E: L:
F: M:
G:
