Self-Test C-1.10.2: Calculate Required Measurements for Piping Offsets

Complete Self-Test C-1.10.2 and check your answers.

Solve for the lengths indicated. Express your answers to the nearest [latex]\frac{1}{8}\text{"}[/latex] or [latex]\frac{1}{10}\text{ mm}[/latex], as required.

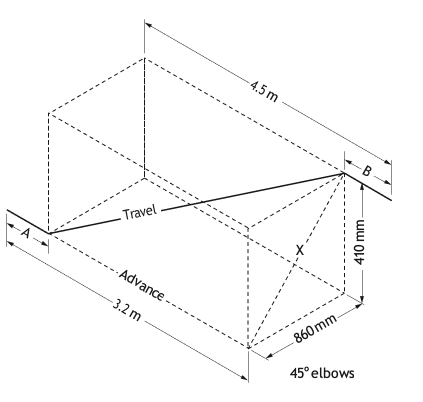

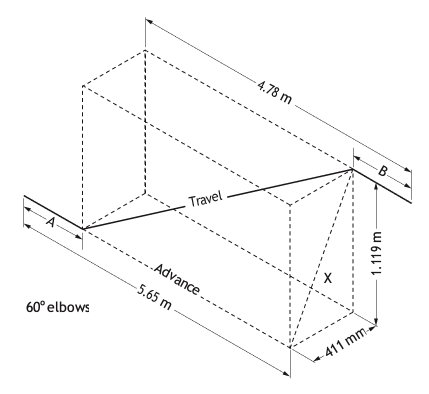

Question 1
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

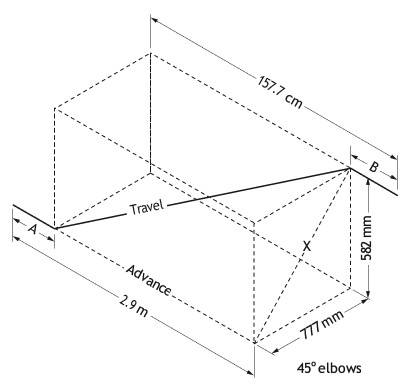

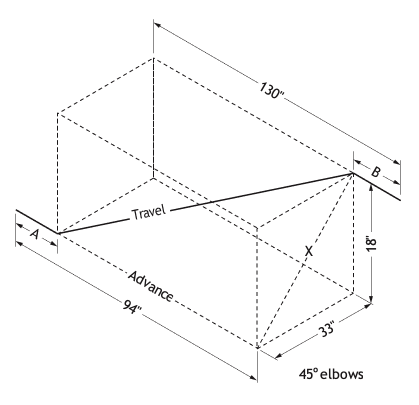

Question 2
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

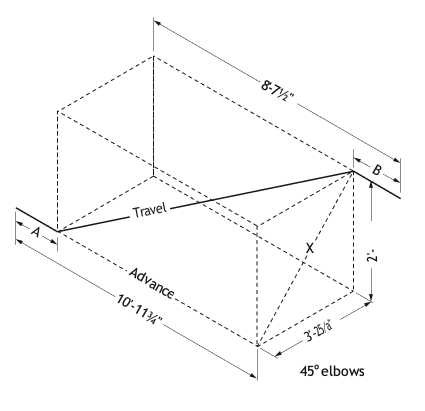

Question 3
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

Question 4
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

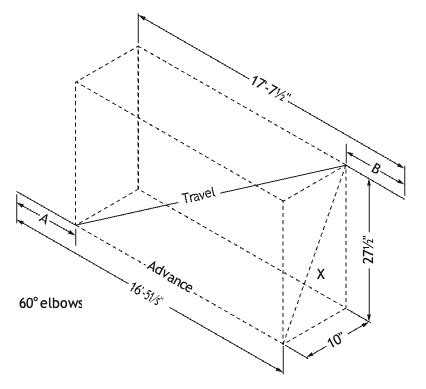

Question 5
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

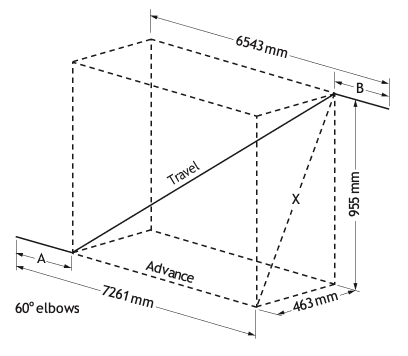

Question 6
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

Question 7
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

Question 8
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

Question 9
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

Question 10
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

Question 11
1. True offset (X) =
2. Advance =
3. Travel =
4. A =
5. B =

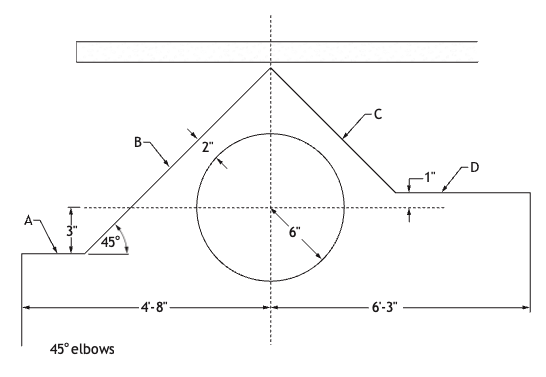

Question 12
1. A =
2. B =
3. C =
4. D =

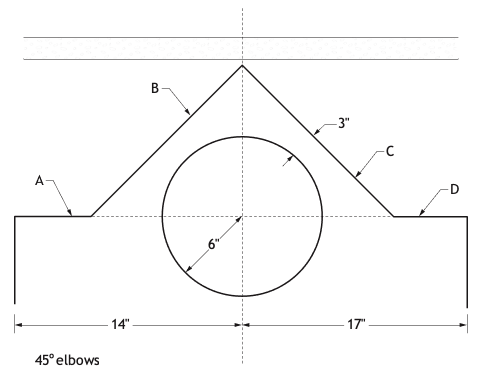

Question 13
1. A =
2. B =
3. C =
4. D =

Question 14
1. A =
2. B =
3. C =
4. D =

Question 15
1. A =
2. B =
3. C =
4. D =

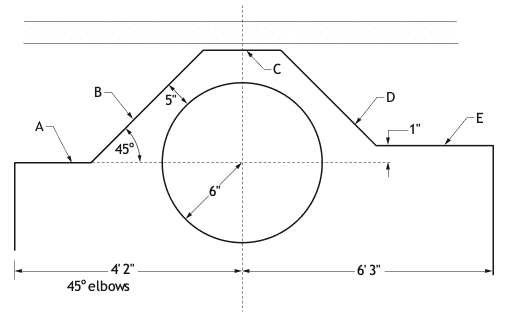

Question 16
1. A =
2. B =
3. C =
4. D =
5. E =

Question 17
1. A =
2. B =
3. C =
4. D =
5. E =

Question 18
1. A =
2. B =
3. C =
4. D =

Answer Key: Self-Test C-1.10.2 is on the other page.
